Running a file server

Serve one directory to every machine in the building. This guide turns a WebGen box into a file server that macOS, Windows and Linux can all find by name and connect to with a password — using the SMB server built into the kernel, with no Samba anywhere.

1 · What does the serving

sudo wgpkg update
sudo wgpkg install ksmbd-tools
sudo wgpkg install avahi
sudo wgpkg install wsdd

2 · Where the share lives

Put it under /home, which survives:

findmnt -no SOURCE --target /home     # confirm this is the webgen-home partition
sudo install -d -m 2775 /home/share

The 2 is setgid: every file created inside inherits the directory’s group, whichever protocol wrote it. Without it, files land in the creator’s primary group and the two protocols disagree about who owns what.

3 · A group for the share — not wheel

sudo groupadd -r sharedfiles
sudo chgrp -R sharedfiles /home/share
sudo chmod 2775 /home/share
sudo usermod -a -G sharedfiles alice

4 · SMB: users, then the share

SMB authentication is separate from Unix accounts, but file ownership is not. Three things must agree, and it is worth knowing which does what:

sudo useradd -m -G sharedfiles alice   # Unix identity (ownership)
sudo ksmbd.adduser -a alice            # SMB password (prompts twice)

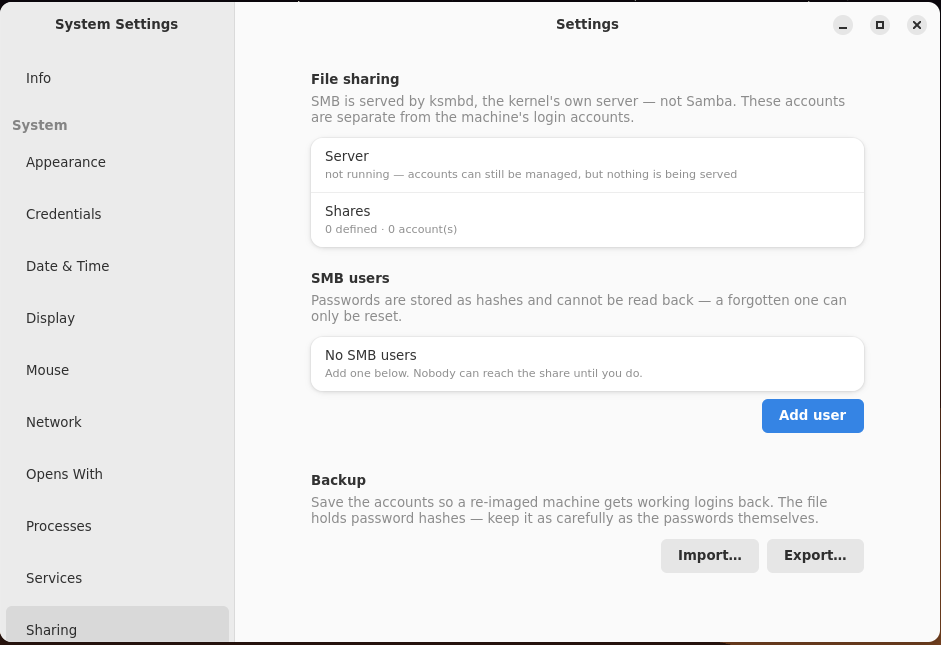

Or from System Settings → Sharing, which is usually easier and is the only place that can back the accounts up. Add and remove users, reset a forgotten password, and export the whole set to a file:

sudo webgen-share users list
sudo webgen-share users export ~/smb-users.db

This is also why the pane is honest about a stopped server rather than hiding it. The state above is a fresh machine: ksmbd installed, nothing served, no accounts — exactly where step 1 leaves you, and exactly what webgen-share status reports from a terminal.

That export exists for one reason: SMB passwords are stored as hashes and cannot be read back, so re-imaging a machine loses every share login unless they were copied first. Importing the file on the new install restores working logins without anyone having to remember what they were. Guard the file as carefully as the passwords — it contains the hashes.

Settings also flags the mistake that is hardest to diagnose from a client: a user that exists in the password database but is not named in any share’s valid users. From the other end that looks exactly like a wrong password.

Then /etc/ksmbd/ksmbd.conf:

[global]
	workgroup = WORKGROUP
	netbios name = TV
	server min protocol = SMB2_10
	map to guest = never
	restrict anonymous = 2
	smb3 encryption = auto
	server signing = mandatory

[share]
	path = /home/share
	read only = no
	valid users = alice
	create mask = 0664
	directory mask = 0775
	force group = sharedfiles

smb3 encryption takes disabled, auto or mandatory — not yes, which is silently ignored and leaves you believing the wire is encrypted when it is not. auto encrypts when the client asks (-o seal); mandatory refuses clients that cannot.

sudo rc-update add ksmbd default
sudo rc-service ksmbd start

5 · NFS — optional, and read this first

macOS and Windows both speak SMB natively, so for a mixed network NFS buys you nothing. Add it only for Unix hosts you already trust, and name them individually:

# /etc/exports -- named hosts, never a whole subnet
/home/share  192.168.1.170(rw,sync,no_subtree_check,fsid=0,all_squash,anonuid=1000,anongid=3000)

fsid=0 marks the NFSv4 pseudo-root, so clients mount server:/ rather than the server-side path — which means moving the directory later needs no client changes. Naming hosts is host-level trust, not user authentication: it is a large reduction in exposure, not a fix. The real answer is SMB only, or NFSv4 with Kerberos.

sudo exportfs -ra
sudo rc-update add nfs-server default
sudo rc-service nfs-server start

6 · Being findable

Without this the share exists only if you already know the IP — and that IP moves with the DHCP lease. avahi gives the machine a stable <name>.local that follows it.

sudo rc-update add avahi default && sudo rc-service avahi start
sudo rc-update add wsdd  default && sudo rc-service wsdd  start
avahi-browse -at | grep _smb      # confirm the share is advertised

Installing ksmbd-tools also drops /etc/avahi/services/smb.service, the advert Finder looks for. If the share never appears, check /var/log/messages for XML_ParseBuffer() failed — avahi ignores a malformed service file and carries on, so the only symptom is silence.

7 · Firewall

Every port below is scoped to the LAN. Add to /etc/nftables.conf inside the input chain:

ip saddr 192.168.1.0/24 tcp dport 445  accept   # SMB
ip saddr 192.168.1.0/24 tcp dport 2049 accept   # NFSv4 (only if you enabled it)
ip saddr 192.168.1.0/24 udp dport 5353 accept   # mDNS
ip saddr 192.168.1.0/24 udp dport 3702 accept   # WS-Discovery
ip saddr 192.168.1.0/24 tcp dport 5357 accept   # WS-Discovery metadata

sudo nft -c -f /etc/nftables.conf     # validate BEFORE loading
sudo rc-service firewall restart

8 · Connecting — macOS

The server should appear in Finder’s Shared sidebar by name. If it does not, connect directly with ⌘K:

smb://tv.local/share

Use the SMB username and password from step 4 — not the machine’s login. Tick Remember this password in my keychain to make it stick. To mount at login: System Settings → General → Login Items, add the mounted volume.

9 · Connecting — Windows

With wsdd running the machine appears under Network in Explorer. Otherwise type the path into the address bar:

\\tv\share

To keep it across reboots, map a drive — in Explorer, This PC → Map network drive, tick Reconnect at sign-in and Connect using different credentials; or from a command prompt:

net use Z: \\tv\share /user:alice /persistent:yes

If Windows refuses with a protocol error, it is almost always looking for SMB1. It is not available here and should not be enabled — it is the protocol behind WannaCry.

10 · Connecting — Linux and WebGen

In Files, use Connect to Server and pick SMB / CIFS. The Share name field wants the share’s name (share), not the server’s directory path — typing /home/share there is the commonest way to get a mount error that explains nothing. The password is kept in webgen-vault, never in the file manager’s settings.

To mount it at boot instead, put the credentials in a root-only file — /etc/fstab is world-readable, so a password on that line is readable by every local user:

sudo install -m 0600 /dev/null /etc/cifs-credentials
sudo tee /etc/cifs-credentials <<'EOF'
username=alice
password=your-smb-password
EOF

# /etc/fstab
//tv.local/share  /mnt/share  cifs  credentials=/etc/cifs-credentials,vers=3.1.1,_netdev,nofail,uid=1000,gid=3000,iocharset=utf8,file_mode=0664,dir_mode=0775  0 0

WebGen mounts these with webgen-netmount, which waits for the network to actually work rather than merely for the network script to have run. Systemd distributions should add noauto,x-systemd.automount instead, so the share mounts on first access and a machine away from this network never delays boot.

For NFS on a host you exported to:

//  NFS uses the pseudo-root, not the server-side path
tv.local:/  /mnt/share-nfs  nfs4  _netdev,soft,timeo=50,retrans=2  0 0

soft makes I/O fail after about ten seconds when the server disappears instead of hanging a process forever. Right for a convenience share; use hard where a torn write would matter. Note nofail is not used on the NFS line: libmount passes it through to mount.nfs4, which rejects it, and the entry then never mounts at all.
